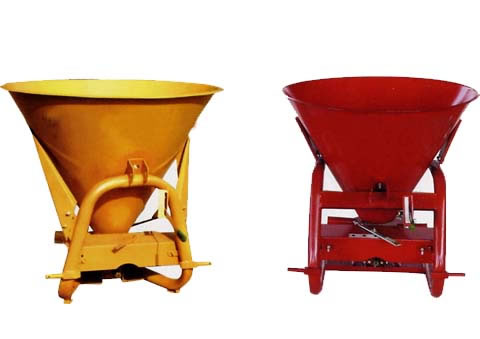

Spreader

Spreader



Technical Specifications for Spreader

Type CDR600
Linkage Three-point mounted
Matched Power（kw） 11-33
Working speed 5—8km/h
Work radius　(m) 8--10
Productivity（ha/h） 5-8
Funnel's volume(L) 300
Weight（kg） 80
Overall dimensions (L×W×H) (cm) 105×105×100
Packing dimensions (㎝) Fram 1500×900×900/10
（1200×900×800/5）
Funnel 1150×1150×1000/10
（1000×1000×850/5）
